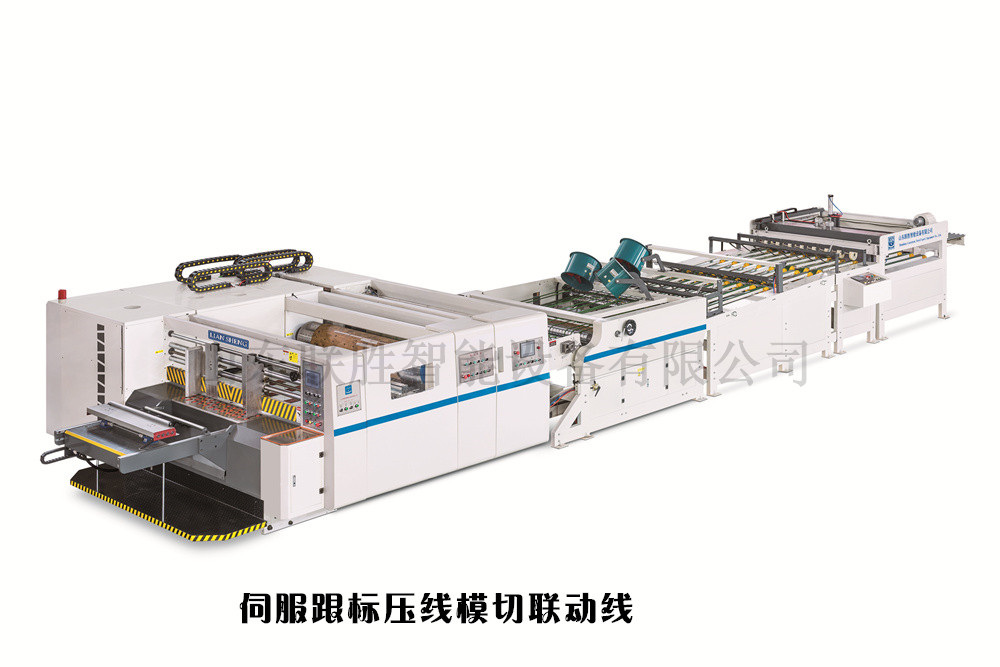

Servo Calibrating Creasing and Die Cutting Line

    本聯動線集自動上料，免壓送紙，自動跟標壓線、模切，清廢點數堆碼，捆扎，碼垛纏繞等功能。是專為彩箱和預印紙箱量身定做的一款新型設備.

    With the function of Automatic Loading, Non- pressure Feeding, automatic Calibrating, Creasing , Die Cutting , Stripping, Counting,Stacking and Strapping. It is a new equipment specially designed for colored boxes and pre-printed cartons.

    1. 強度高：送紙部采用伺服免壓送紙，不但提高了送紙精度，而且不會對瓦楞造成破壞，與傳統的拉紙輥相比，模切后的紙板強度高出25-30%；

       Higher strength: Servo Driven Non-pressure Feeding , which not only improves the precision of the feeding, but also will not cause damage to the corrugating. The strength of the products after die-cut is  25-30% stronger than the one from the traditional pulling rollers feeding unit;

    2. 成型好：圓壓圓模切實現平壓平模切的效果。壓線能實現子母線（凸凹線、上下線）的功能；壓線模切快速成型。

      Better Shaping: achieved the effect of flat die cutting. The function of creasing unit  can crease the convex and concave line at the same time, guarantees the rapid molding of the product.

    3. 精準：跟綜印刷面的色標，自動調整壓線及模切位置，實現精準模切；精度 ±0.5mm。

       Precision: detect the mark on the cardboard, automatically adjust the position of creasing and die-cutting, achieves the accuracy of ± 0.3mm.

    4. 節約：實現前后無邊料模切，節約原紙。節約率：1～4%。

       Material saving： no need offcut edges, saves raw material. Saving rate: 1% to 4%.

    5.自動清廢，通過震蕩和高壓風機，實現完美清廢。

       Double beat vibrates stripping, by vibration and high speed blower, achieves best cleaning  effect。

                                                  主要技術參數

                                                                                                    Parameters
