聯系人: 廖經理
手機: 13954972699
網址: fsnhyongjun.cn
地址: 山東省臨沂市高新區綠茵路8號

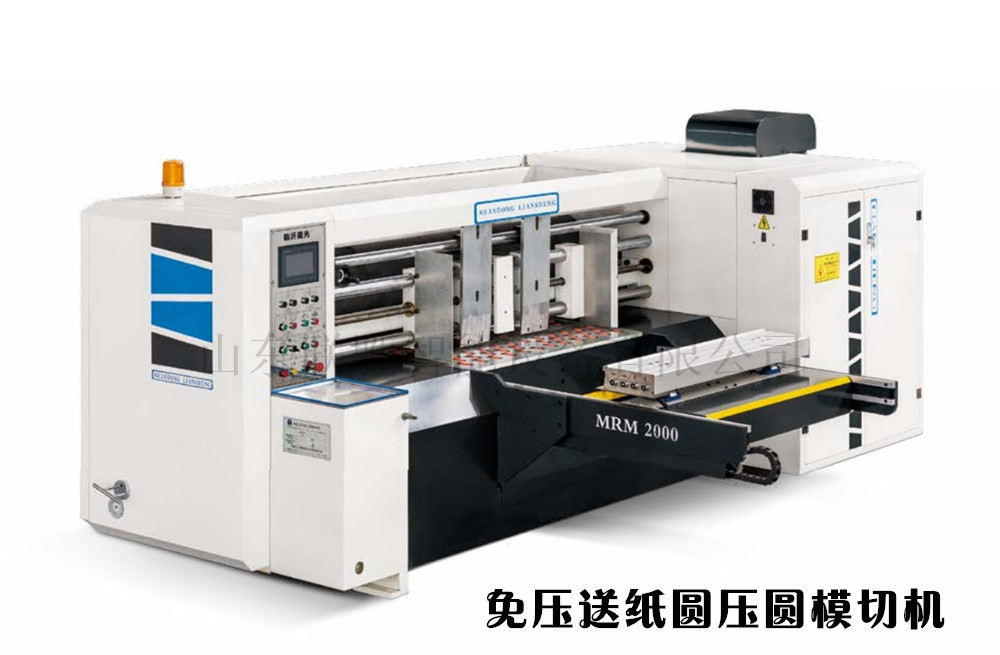

| 免壓送紙圓壓圓模切機 | ||||
| Non—pressure Feeding Rotary Die Cutting Mahcine | ||||
|
獨特設計解決模切過程中紙箱抗壓強度降低問題，有效提高抗壓強度； |
Unique design to solve the problem of cartons strength reducing in the process of feeding, effectively improves the strength of the product; | |||
| 配全球先進、穩定、精確的德國力士樂伺服控 制系統； | Adopts the advanced, stable and accurate Bosch-Rexroth Servo Control System | |||
| 前后雙風室送紙變頻調壓確保送紙更精確； | Forward and Aft vacuum chambers, vacuum adjustable by applying Frequency converter, guarantees the precision of feeding; | |||
| 先進的液壓控制軸向移動系統確保移動平穩準確 | Axial movement of the Anvil roller driven by hydraulic system, smooth and stable. | |||
| 自動磨削系統確保模切膠墊平整光滑 | Automatic repaire unit for the Anvil rubber cover,repaires the surface, keeps it smooth. | |||
| 自動噴淋潤滑系統使傳動系統壽命更長久 | Automatic spray lubricating system, improves the working condition of the whole transmiting system. | |||
| 傳動齒輪采用 20CrMnTi 滲碳處理，德國大型磨齒機精磨而成 | Transmission gears are made of 20CrMnTi with carburizing treatment and manufactured by German Processing Center. | |||
| 人機界面使設備調整簡單快捷 | Touch screen HMI, easy and convenient adjustment. | |||
|
進口模切膠墊使用壽命長 |
Inmported Die Cutting Rubber Pad, longer serving life. | |||
| 主要技術參數 | Parameters | |||
| 規格型號 | Model | MRM216 | MRM220 | MRM225 |
| 最高速度 | Max. Speed(Pcs/Min.) | 180 | 180 | 180 |
| 經濟速度 | Min. Speed(Pcs/Min.) | 120-160 | 120-160 | 120-160 |
| 最大模切尺寸 | Max. Feeding Size(mm) | 1380*1600 | 1380*2000 | 1380*2400 |
| 最小模切尺寸 | Min. Feeding Size(mm) | 400*600 | 400*600 | 400*600 |
| 適應紙板厚度 | Suitable Thickness(mm) | 2-11 | 2-11 | 2-11 |
| 模切精度 | Precision(mm) | ±1 | ±1 | ±1 |
| 電機總功率 | Main Power(KW) | 7.5 | 7.5 | 11 |
| 另有型號 | ||||
| MRM116 | MRM120 | MRM125 | ||
| MRM316 | MRM320 | MRM325 | ||
| MRM416 | MRM420 | MRM425 | ||
